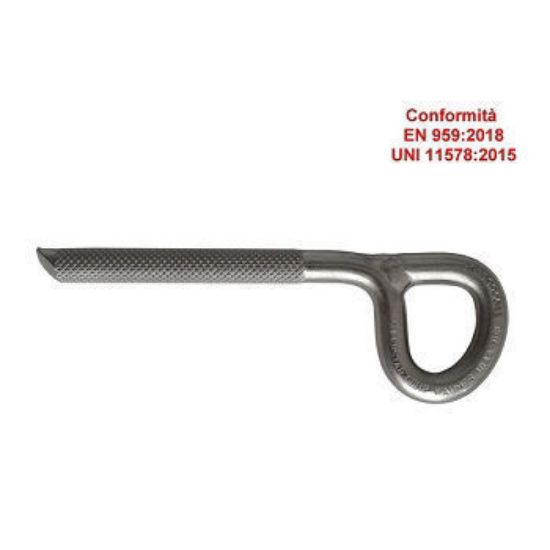

Raumer - ANTRAX Ø8x80 A316L
It is undoubtedly the most commonly used resin anchor in the world. The shape of the eyelet has been designed to withstand high levels of tensile or shear force.
Be the first to review this product
$6.12
excluding
shipping
Availability:
18 in stock
SKU:
sku060
Qty:
Ship to
Select country
United States
Canada
Mexico
*
Other
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Apply
Add to wishlist
Add to compare list
Email a friend
specifications
Shank with knurled surface;
Anchor with the best adheasion performance with the resin than other systems
Anchor resistance unchanged respect to those of greater diameter
This anchor also saves on resin as a drill hole of 9 mm, or 3\8" x 80 mm is all that is required.
Drilling a smaller hole also saves the drill's battery power.
It is also very cost-effective.
Like all our climbing anchor systems, the ANTRAX’s surface is matt grey to minimise environmental and visual impact.
CERTIFICATIONS
Certificate of conformity EN 959: 2018 - Rock anchors
Certificate of conformity UNI 11578: 2015 - Anchor device type A
UIAA
REFERENCES
Material: A316L
Weight: 75 gr
Shank dimensions: Ø 8 x 80 mm
Drill hole recommended: 9 mm, can be used with a 3\8"
Static shear strength: 26 KN
Static pull-out strength: 27 KN
Device usable by 1 person at a time
*
Click
HERE
for more detailed information from RaumerClimbing about this anchor!
*
When placing any glue-in bolt, always ensure that you "dry test" the placement by inserting the bolt that you intend to use into the hole! This process is highly recommended to be certain that the drill hole has the proper diameter and depth. This step should always be done prior to injecting any glue into the hole!
